LNJ814W83RA
LED ORANGE HIGH BRIGHT USS 0603Manufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

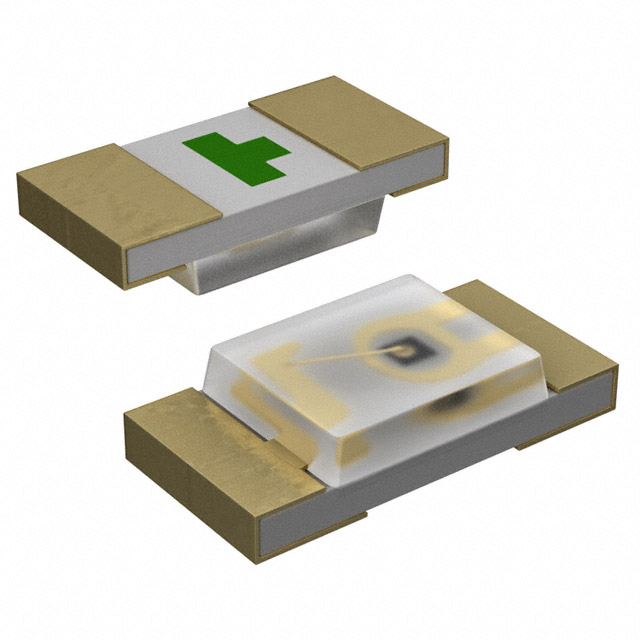

Panasonic Electronic Components LNJ814W83RA is a discrete Orange LED designed for surface mount applications. This component features a 620nm dominant wavelength with a peak wavelength of 630nm, delivering a millicandela rating of 15mcd at a typical forward voltage of 1.9V and a test current of 5mA. Housed in an industry-standard 0603 (1608 Metric) package, its dimensions are 1.60mm L x 0.80mm W with a maximum height of 0.50mm. The lens style is a rectangle with a flat top, measuring 1.10mm x 0.80mm. This LED is commonly utilized in general indication applications across various industries, including industrial automation and consumer electronics. It is supplied in Cut Tape (CT) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 0603 (1608 Metric) |
| Color | Orange |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 15mcd |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 0.50mm |
| Wavelength - Peak | 630nm |
| Wavelength - Dominant | 620nm |
| Supplier Device Package | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
