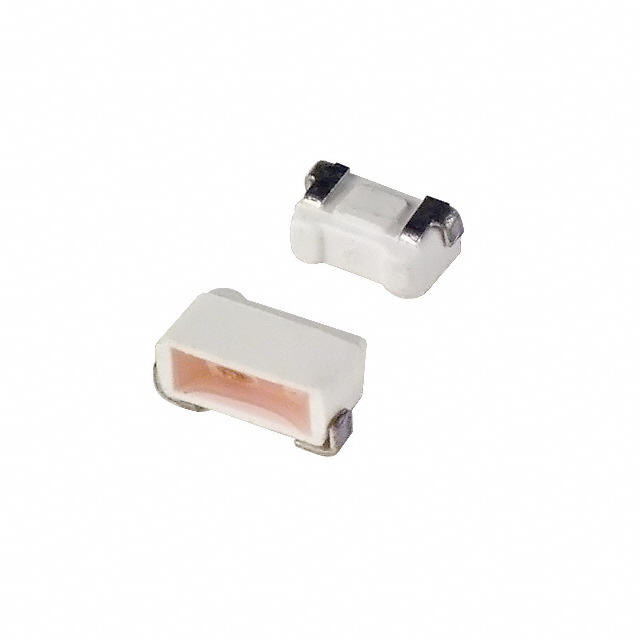

LNJ810L6SRA
LED ORANGE SV CASE TYPE SMD R/AManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LNJ810L6SRA is an orange discrete LED designed for surface mount, right-angle applications. This component features a 2-SMD, J-Lead package, also known as SV (Side View) case type. With a typical forward voltage of 1.93V and a test current of 10mA, it achieves a luminous intensity of 1.8mcd. The LED's dimensions are 2.20mm in length and 1.20mm in width, with a lens measuring 2.00mm x 0.70mm and a flat-top rectangular profile. Its peak wavelength is 610nm. This component is commonly utilized in industrial automation, automotive lighting, and consumer electronics for status indication and visual feedback. Supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Orange |
| Size / Dimension | 2.20mm L x 1.20mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 1.8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.93V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.20mm |
| Wavelength - Peak | 610nm |
| Wavelength - Dominant | - |
| Supplier Device Package | SV (Side View) -Case Type |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 0.70mm |
