LNJ810L6DRA
LED ORANGE SV CASE TYPE SMD R/AManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

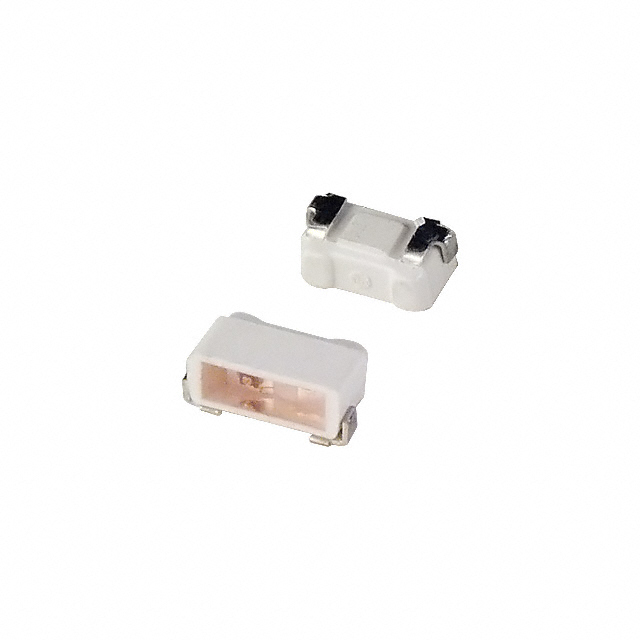

Panasonic Electronic Components LNJ810L6DRA is a discrete orange LED designed for surface mount, right-angle applications. This component, housed in a 2-SMD, J-Lead package (SV Case Type), features a forward voltage of 1.93V at a test current of 10mA, producing a luminous intensity of 2.5mcd. The LED has a rectangular lens measuring 2.00mm x 0.70mm with a flat top, and a peak wavelength of 630nm. Its dimensions are 2.20mm L x 1.20mm W with a maximum height of 1.20mm. Supplied on tape and reel, this LED is suitable for industrial automation, medical equipment, and consumer electronics where clear visual indication is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Orange |
| Size / Dimension | 2.20mm L x 1.20mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 2.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.93V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.20mm |
| Wavelength - Peak | 630nm |
| Wavelength - Dominant | - |
| Supplier Device Package | SV (Side View) -Case Type |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 0.70mm |
