LNJ808R88RA
LED ORANGE DIFF SS TYPE LED SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

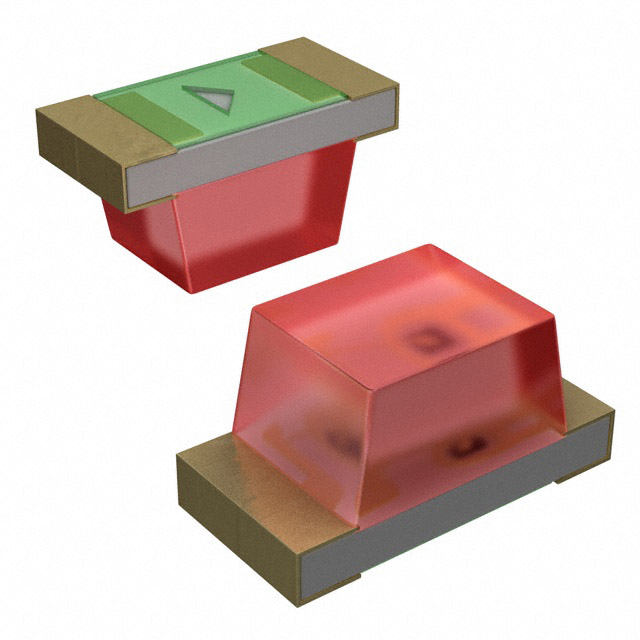

Panasonic Electronic Components LNJ808R88RA is a 0603 (1608 Metric) surface mount orange LED. This diffused lens component operates with a typical forward voltage of 1.9V and a test current of 10mA, producing a millicandela rating of 6.5mcd. The LED features a red lens color and a rectangular, flat-top lens style with dimensions of 0.90mm x 0.80mm. Its compact size of 1.60mm L x 0.80mm W and a maximum height of 0.90mm make it suitable for space-constrained applications. This component is supplied in Tape & Reel (TR) packaging. It is commonly utilized in industrial automation and consumer electronics for status indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Orange |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 6.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | Red |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 0.90mm |
| Wavelength - Peak | 620nm |
| Wavelength - Dominant | - |
| Supplier Device Package | SS Type LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 0.90mm x 0.80mm |
