LNJ757W86RA
LED RGB CHIP 628NM 525 470NM SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

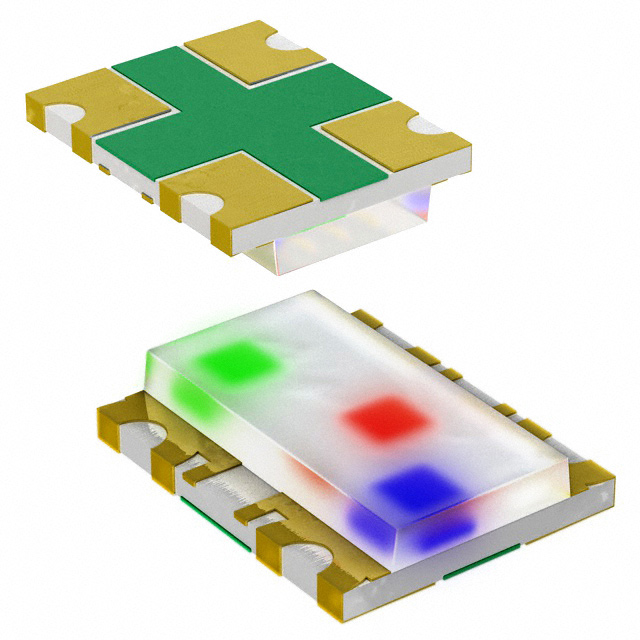

Panasonic Electronic Components LNJ757W86RA is a discrete RGB LED housed in a 4-SMD, No Lead package. This component features a common anode configuration with individual forward voltages of 1.9V for Red, 3V for Green, and 2.95V for Blue, tested at 5mA for each color. The dominant wavelengths are 628nm (Red), 525nm (Green), and 470nm (Blue), with peak wavelengths at 643nm, 520nm, and 462nm respectively. The LED provides luminous intensity ratings of 30mcd (Red), 90mcd (Green), and 15mcd (Blue) when driven at 5mA. Its compact dimensions of 1.30mm L x 1.05mm W and a maximum height of 0.35mm make it suitable for surface mount applications where space is critical. This LED is commonly utilized in display and illumination systems across various industries. The LNJ757W86RA is supplied on a tape and reel for efficient automated assembly.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 1.30mm L x 1.05mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 30mcd Red, 90mcd Green, 15mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3V Green, 2.95V Blue |
| Lens Color | - |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | - |
| Height (Max) | 0.35mm |
| Wavelength - Peak | 643nm Red, 520nm Green, 462nm Blue |
| Wavelength - Dominant | 628nm Red, 525nm Green, 470nm Blue |
| Supplier Device Package | ESS Type LED |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.30mm x 0.70mm |
