LNJ437W84RA
LED AMBER ESS II SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

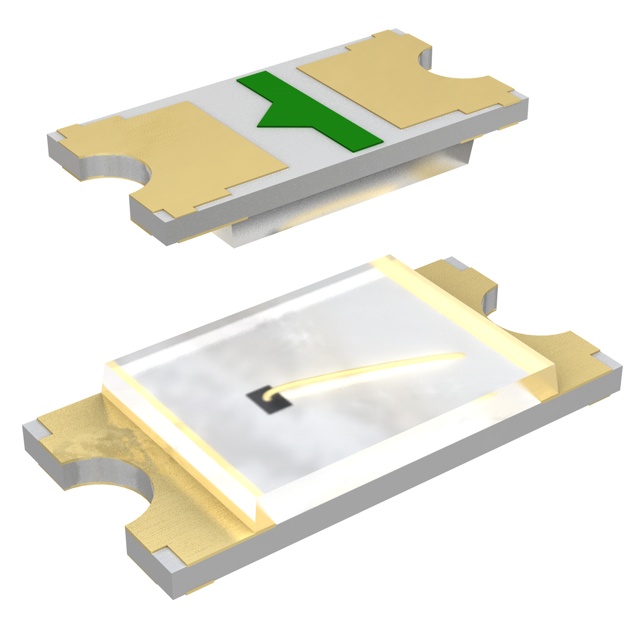

Panasonic Electronic Components LNJ437W84RA is an amber LED for discrete indication applications. Featuring a dominant wavelength of 590nm and a peak wavelength of 595nm, this component operates at a typical forward voltage of 1.95V with a test current of 5mA, producing a millicandela rating of 25mcd. The LED is housed in an industry-standard 0603 (1608 Metric) surface-mount package with dimensions of 1.60mm L x 0.80mm W. Its lens measures 1.10mm x 0.80mm, offering a rectangular shape with a flat top. This component is supplied on tape and reel. Applications include automotive, industrial control, and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Amber |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 25mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.95V |
| Lens Color | - |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 0.25mm |
| Wavelength - Peak | 595nm |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | - |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
