LNJ426W83RA
LED AMBER UTSS TYPE SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

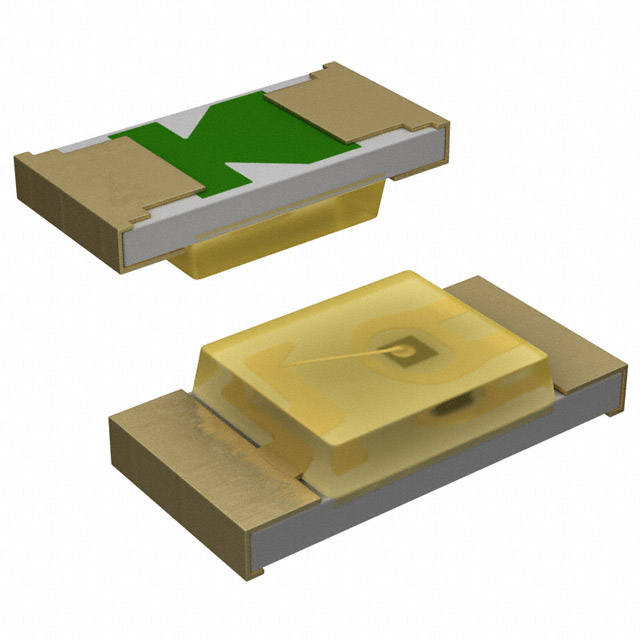

Panasonic Electronic Components LNJ426W83RA is a discrete amber LED designed for surface mount applications. This component, utilizing the UTSS Type package, features a standard configuration with a forward voltage of 2.05V at a test current of 10mA. The dominant wavelength is 589nm, with a peak wavelength of 595nm, delivering an illumination intensity of 35mcd. Its compact 0603 (1608 Metric) package measures 1.60mm in length and 0.80mm in width, with a height of 0.42mm. The lens is a rectangle with a flat top, measuring 1.10mm x 0.80mm. This LED is commonly found in industrial automation, consumer electronics, and automotive lighting applications. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Amber |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 35mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 0.42mm |
| Wavelength - Peak | 595nm |
| Wavelength - Dominant | 589nm |
| Supplier Device Package | UTSS Type |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
