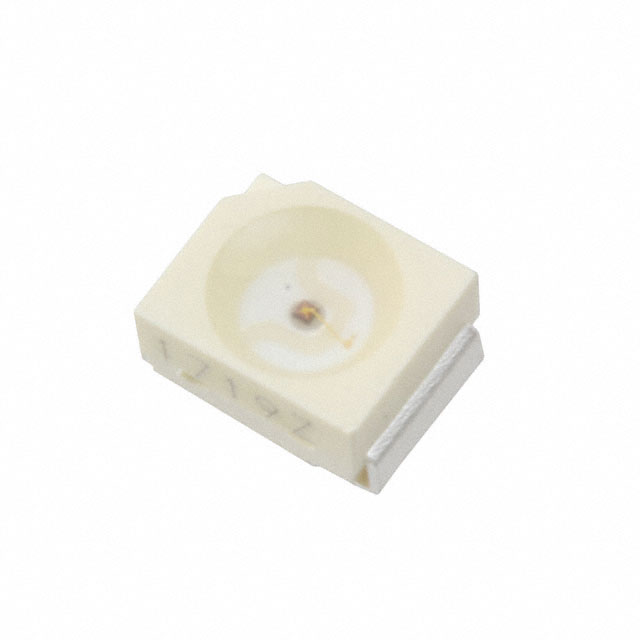

LNJ424C46RA
LED AMBER 3528 SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LNJ424C46RA is a discrete amber LED designed for surface mount applications. This 3528 footprint component operates with a typical forward voltage of 2.1V and a test current of 20mA, achieving a millicandela rating of 230mcd at a dominant wavelength of 589nm and a peak wavelength of 595nm. The LED features a round with flat top lens style and is supplied in a 2-PLCC package, delivered on tape and reel. Its dimensions are 3.20mm in length and 2.80mm in width, with a maximum height of 2.00mm. This component is utilized in various indication applications across automotive, industrial, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Amber |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 230mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 2.00mm |
| Wavelength - Peak | 595nm |
| Wavelength - Dominant | 589nm |
| Supplier Device Package | 3528 |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
