LNJ418C84RA
LED AMBER SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

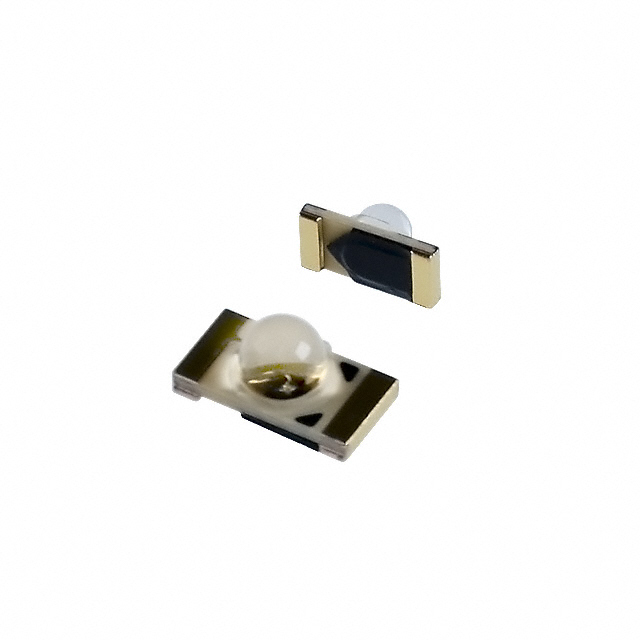

Panasonic Electronic Components' LNJ418C84RA is a discrete amber SMD LED designed for indication applications. This component, packaged in the common 1206 (3216 Metric) footprint, features a forward voltage (Vf) of 2V (typical) and is rated for 10mA test current. It offers a typical luminous intensity of 85mcd, with a peak wavelength of 595nm. The LED has a round, domed top lens with a diameter of 1.42mm, and its dimensions are 3.20mm long by 1.60mm wide. The LNJ418C84RA is supplied on a Tape & Reel (TR) for automated assembly. This component is suitable for use in automotive and industrial automation sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Amber |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 85mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.60mm |
| Wavelength - Peak | 595nm |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | - |
| Lens Style | Round with Domed Top |
| Lens Size | 1.42mm Dia |
