LNJ416Q8YRA
LED AMBER MICROLENS TYPE SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

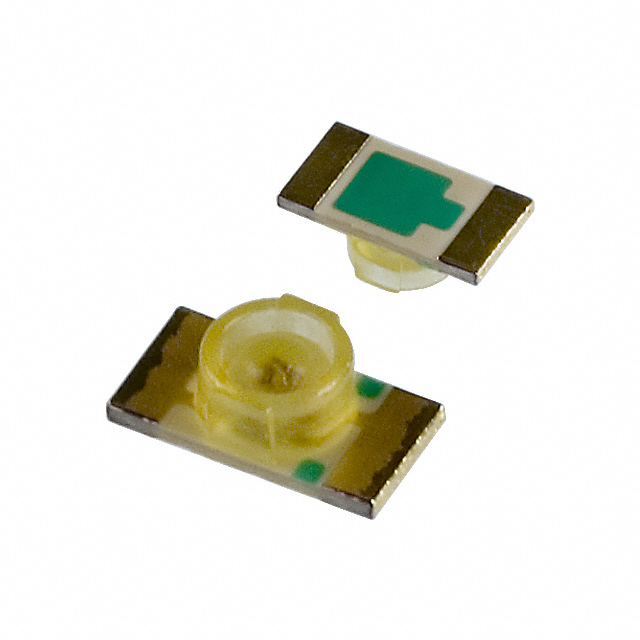

Panasonic Electronic Components LNJ416Q8YRA is a discrete amber LED designed for surface mount applications. This component utilizes a microlens type supplier device package and is supplied in a 1206 (3216 Metric) case, measuring 3.20mm L x 1.60mm W with a maximum height of 1.10mm. It features a round lens with a flat top, measuring 1.70mm in diameter. The LED operates with a typical forward voltage of 2V and a test current of 10mA, achieving a millicandela rating of 3.3mcd. The dominant wavelength is 590nm. This component is commonly utilized in automotive, industrial, and consumer electronics for status indication. It is provided in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Amber |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 3.3mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 590nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Microlens Type |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 1.70mm Dia |
