LNJ410Q6YRA
LED AMBER SV CASE TYPE SMD R/AManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

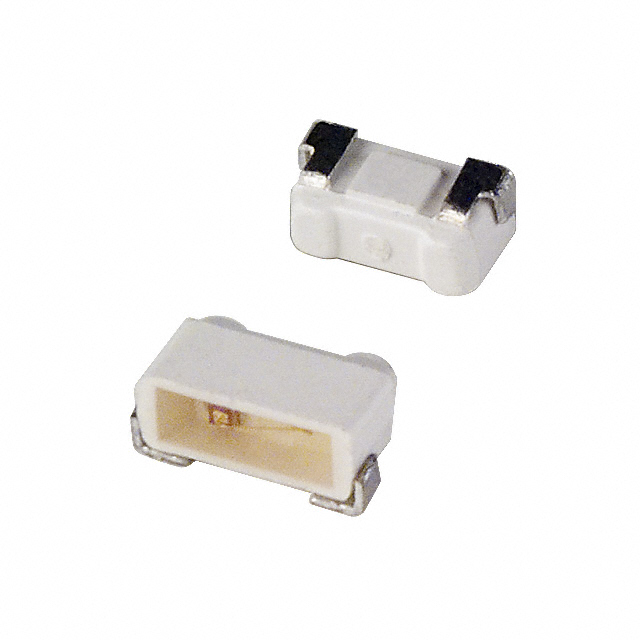

Panasonic Electronic Components LNJ410Q6YRA is an amber, surface-mount, right-angle LED designed for discrete indication. This component features a 2-SMD, J-Lead package with a SV (Side View) case type, measuring 2.20mm in length and 1.20mm in width. It operates with a typical forward voltage (Vf) of 2V and is tested at 10mA, producing a luminous intensity of 2.5mcd. The rectangular lens has a flat top and a peak wavelength of 590nm. This LED is commonly utilized in industrial automation, consumer electronics, and automotive applications requiring reliable visual status indication. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Amber |
| Size / Dimension | 2.20mm L x 1.20mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 2.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.20mm |
| Wavelength - Peak | 590nm |
| Wavelength - Dominant | - |
| Supplier Device Package | SV (Side View) -Case Type |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 0.70mm |
