LNJ406K54UX
LED AMBER DIFFUSED SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

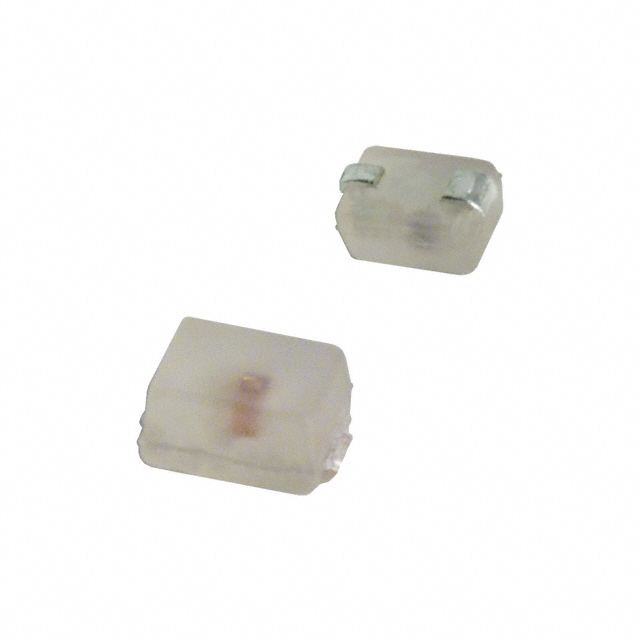

Panasonic Electronic Components LNJ406K54UX is a diffused amber LED designed for surface mount applications. This discrete indicator component features a standard configuration with a typical forward voltage of 2V and a test current of 10mA, producing a luminous intensity of 8.5mcd. The LED is housed in an 0805 (2012 Metric) package with dimensions of 1.70mm L x 1.25mm W and a maximum height of 1.10mm. Its lens is yellow and diffused, with a rectangular shape and a flat top, measuring 1.70mm x 1.25mm. The peak wavelength is 595nm. This component is supplied on tape and reel (TR) and finds application in industrial automation, consumer electronics, and general indication.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Color | Amber |
| Size / Dimension | 1.70mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 8.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Yellow |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 595nm |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.70mm x 1.25mm |
