LNJ353W83RA
LED GREEN SV 0.5 TYPE SMD R/AManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

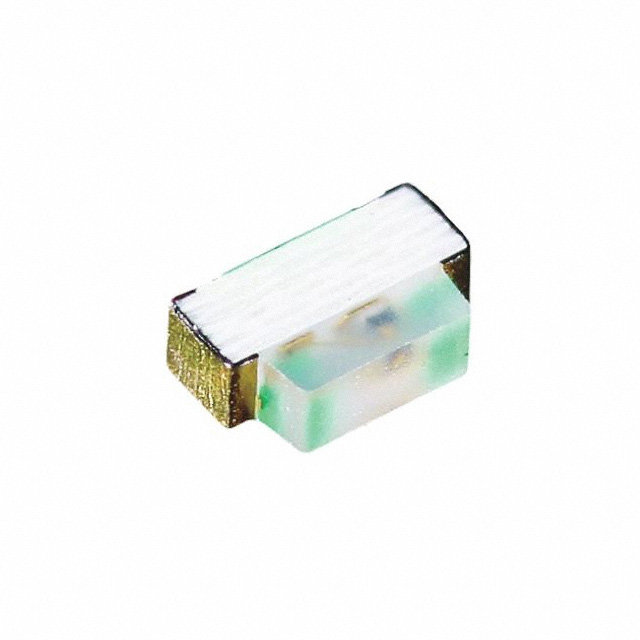

Panasonic Electronic Components LNJ353W83RA is a discrete, surface-mount right-angle LED designed for indication. This green LED, emitting at a dominant wavelength of 572nm with a peak wavelength of 575nm, features a 1.95V forward voltage at a test current of 5mA. The component is housed in a 2-SMD, No Lead package with a compact SV (Side View) -0.5 Type configuration, measuring 1.80mm in length and 1.10mm in width. It offers a millicandela rating of 8.5mcd and a lens size of 1.20mm x 0.50mm with a flat top rectangle lens style. This device is commonly utilized in industrial automation, medical equipment, and consumer electronics for visual status indication. The LNJ353W83RA is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Green |
| Size / Dimension | 1.80mm L x 1.10mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 8.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.95V |
| Lens Color | - |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 0.60mm |
| Wavelength - Peak | 575nm |
| Wavelength - Dominant | 572nm |
| Supplier Device Package | SV (Side View) -0.5 Type |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.50mm |
