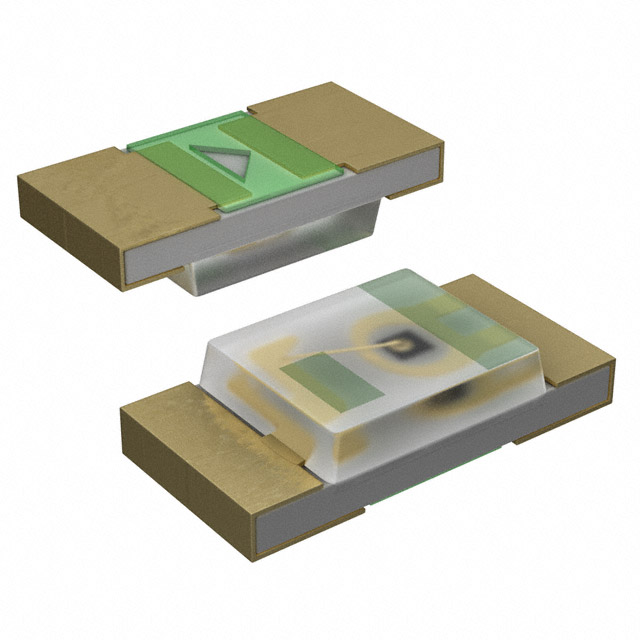

LNJ326W83RA
LED GREEN CHIP SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LNJ326W83RA is a green surface-mount LED indication component. This discrete LED features a forward voltage of 2.05V and a dominant wavelength of 572nm, with a peak wavelength of 575nm. It is supplied in a 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with an overall height not exceeding 0.42mm. The component is delivered on tape and reel. The LED delivers an illumination intensity of 17mcd at a test current of 10mA. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for visual status indication. The lens style is rectangular with a flat top.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Green |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 17mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 0.42mm |
| Wavelength - Peak | 575nm |
| Wavelength - Dominant | 572nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
