LNJ318C8TRA
LED GREEN DOME LENS TYPE SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

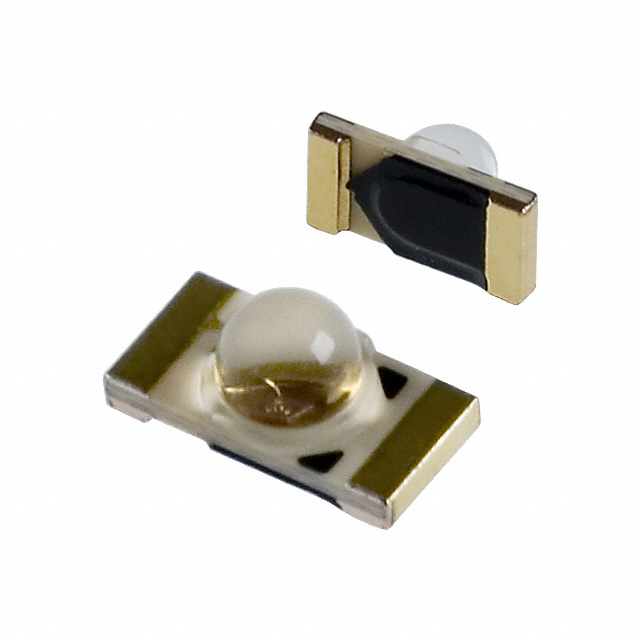

Panasonic Electronic Components LNJ318C8TRA is a Green LED, surface mount component in a 1206 (3216 Metric) package. This discrete LED features a forward voltage of 2.03V (typical) and a luminous intensity of 25mcd at a test current of 10mA. The component is designed with a round, domed top lens measuring 1.42mm in diameter, providing a distinct visual indicator. Its dimensions are 3.20mm in length and 1.60mm in width, with a maximum height of 1.62mm. The LNJ318C8TRA is supplied on tape and reel (TR) for automated assembly processes. This LED is commonly utilized in industrial automation, consumer electronics, and automotive applications where reliable visual feedback is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Green |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 25mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.03V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.62mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Dome Lens Type |
| Lens Transparency | - |
| Lens Style | Round with Domed Top |
| Lens Size | 1.42mm Dia |
