LNJ316C8TRU
LED GREEN MICROLENS TYPE SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

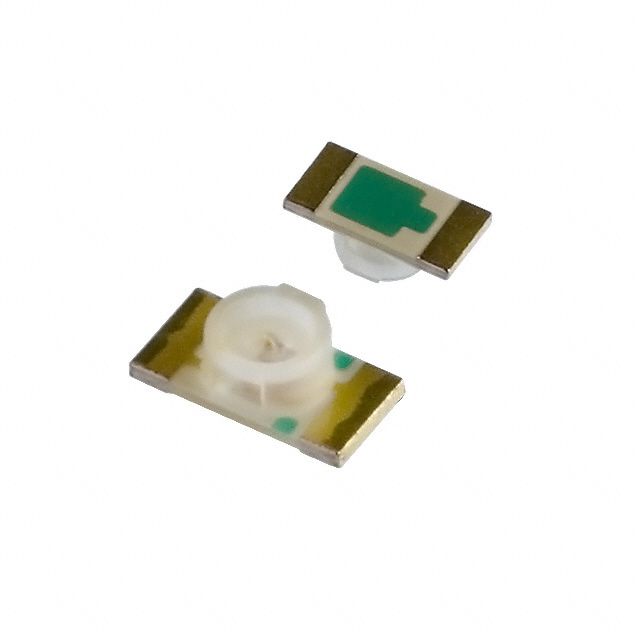

Panasonic Electronic Components LNJ316C8TRU is a green surface mount LED designed for indication applications. This discrete LED features a microlens type supplier device package, housed in a 1206 (3216 Metric) case with dimensions of 3.20mm L x 1.60mm W and a maximum height of 1.10mm. It operates with a typical forward voltage of 2.03V, tested at 10mA, and provides a millicandela rating of 8.8mcd. The LED's lens is round with a flat top, measuring 1.70mm in diameter. This component is supplied on a tape and reel for efficient automated assembly. Its specifications make it suitable for use in automotive, industrial, and consumer electronics sectors requiring reliable visual indicators.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Green |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 8.8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.03V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Microlens Type |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 1.70mm Dia |
