LNJ316C8PRA
LED GREEN MICROLENS TYPE SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

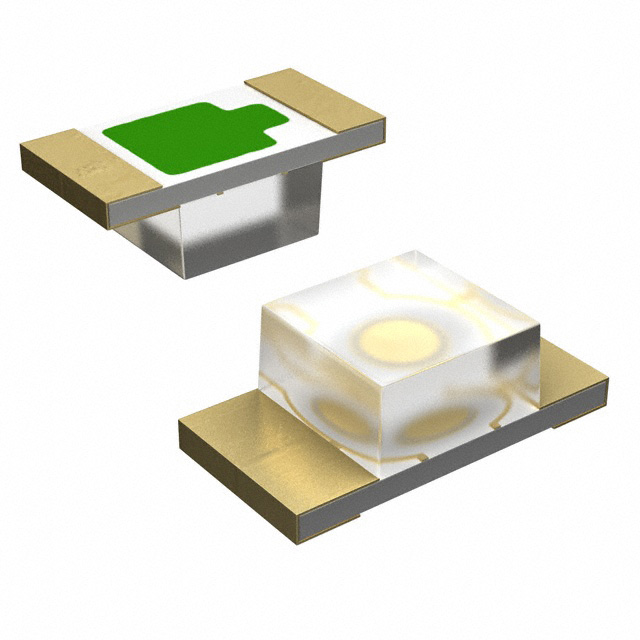

Panasonic Electronic Components LNJ316C8PRA is a discrete green LED designed for surface mount applications. This component features a 1206 (3216 Metric) package with overall dimensions of 3.20mm L x 1.60mm W and a maximum height of 1.10mm. It utilizes a microlens type package for optimized light output, with a round with flat top lens style measuring 1.70mm in diameter. The forward voltage (Vf) is specified at 2.03V typical, with a test current of 10mA yielding a millicandela rating of 1mcd. The peak wavelength is 555nm. This LED is supplied in Tape & Reel (TR) packaging and is commonly used in industrial automation, consumer electronics, and medical devices for indication purposes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Green |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.03V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 555nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Microlens Type |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 1.70mm Dia |
