LNJ311G8TRA
LED GREEN DIFFUSED 3216 SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

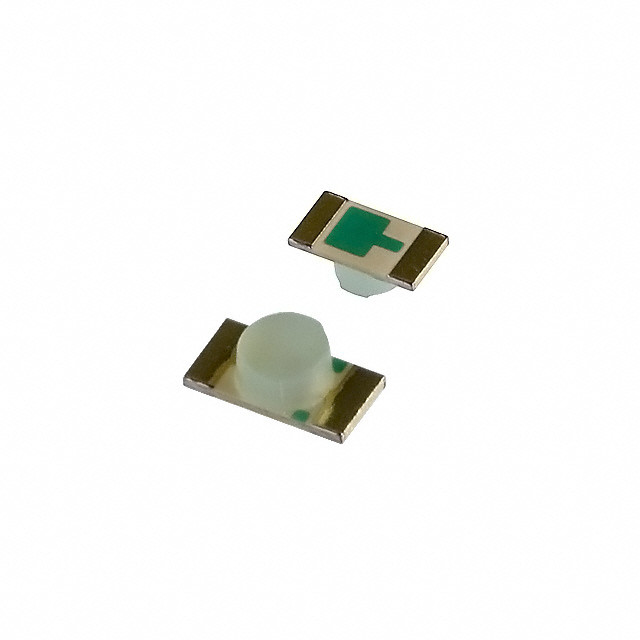

Panasonic Electronic Components LNJ311G8TRA is a diffused, green LED designed for discrete indication. This component features a standard configuration with a forward voltage of 2.03V at a test current of 10mA, and a peak wavelength of 565nm, resulting in a luminous intensity of 5.5mcd. The LED is housed in a 1206 (3216 Metric) surface-mount package with dimensions of 3.20mm x 1.60mm and a maximum height of 1.10mm. Its diffused lens, with a diameter of 1.70mm, provides a broad viewing angle suitable for various industrial and consumer electronics applications. Supplied in tape and reel packaging, the LNJ311G8TRA is a reliable choice for board-level status indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Green |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 5.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.03V |
| Lens Color | Green |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 3216 (1206) |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 1.70mm Dia |
