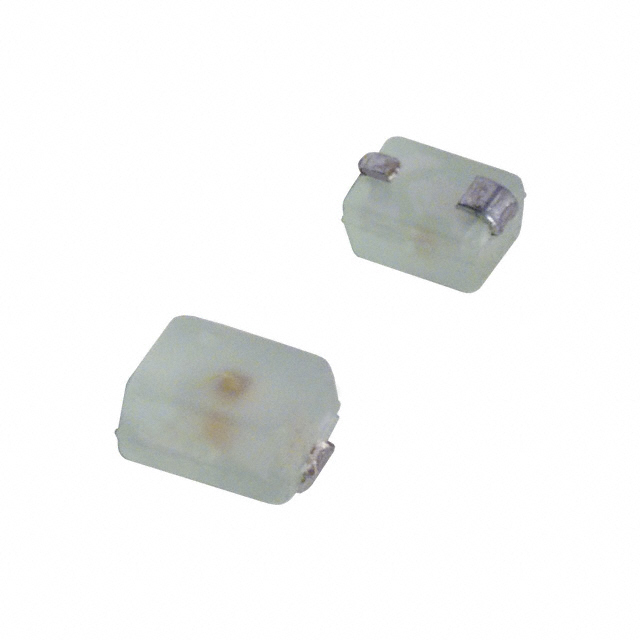

LNJ306G5UUX
LED GREEN DIFFUSED SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LNJ306G5UUX is a diffused surface-mount Green LED designed for indication applications. This component features a forward voltage (Vf) of 2.03V at a test current of 10mA, producing a peak wavelength of 565nm. The LED is housed in an 0805 (2012 Metric) package with dimensions of 1.70mm L x 1.25mm W and a maximum height of 1.10mm. Its diffused lens provides a wide viewing angle suitable for general illumination and status indication. The LNJ306G5UUX is supplied on tape and reel for automated assembly. It is commonly utilized in automotive electronics, consumer electronics, and industrial control systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Color | Green |
| Size / Dimension | 1.70mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 3.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.03V |
| Lens Color | Green |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.70mm x 1.25mm |
