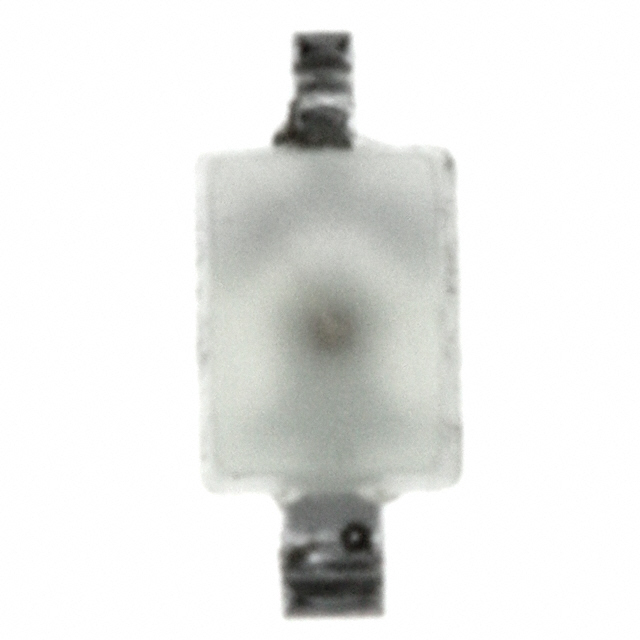

LNJ306G5TUWQ
LED GREEN DIFFUSED SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components' LNJ306G5TUWQ is a diffused green surface-mount LED designed for indication applications. This component, offered in the 0805 (2012 Metric) package, features a standard configuration with a forward voltage of 2.03V (typical) at a test current of 10mA. The LED provides a luminous intensity of 5mcd with a peak wavelength of 565nm. Its diffused lens, measuring 1.70mm by 1.25mm and a height of 1.10mm, ensures broad light dispersion. Supplied on tape and reel, the LNJ306G5TUWQ is suitable for automated assembly processes in industries such as consumer electronics, industrial automation, and automotive.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Color | Green |
| Size / Dimension | 1.70mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.03V |
| Lens Color | Green |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | SMD |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.70mm x 1.25mm |
