LNJ237W82RA
LED RED ESS II SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

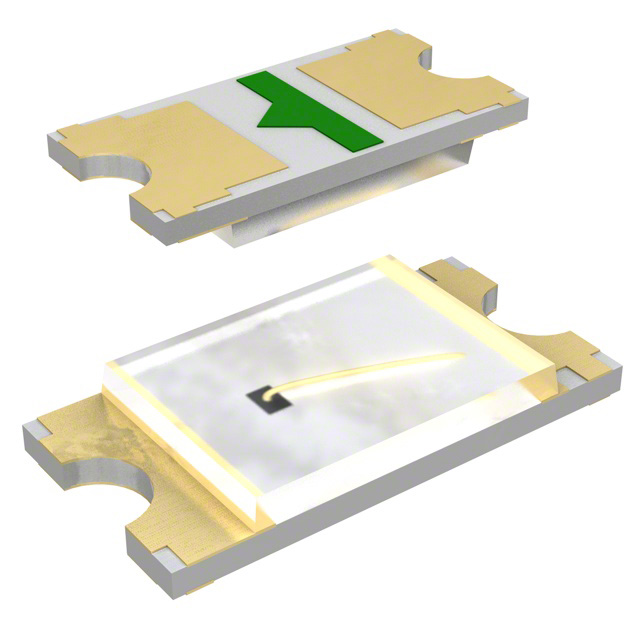

Panasonic Electronic Components LNJ237W82RA is a discrete red LED designed for surface mount applications. This 0603 (1608 Metric) package component features a 630nm dominant wavelength and a typical forward voltage of 1.95V. It delivers 16mcd luminous intensity at a 5mA test current, with a peak wavelength of 645nm. The rectangular lens with a flat top measures 1.10mm x 0.80mm, and the overall component dimensions are 1.60mm L x 0.80mm W, with a maximum height of 0.25mm. This LED is commonly utilized in industrial automation, consumer electronics, and medical devices for status indication. Supplied on tape and reel (TR).
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Red |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 16mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.95V |
| Lens Color | - |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 0.25mm |
| Wavelength - Peak | 645nm |
| Wavelength - Dominant | 630nm |
| Supplier Device Package | - |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
