LNJ224C44RA
LED RED 3528 SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

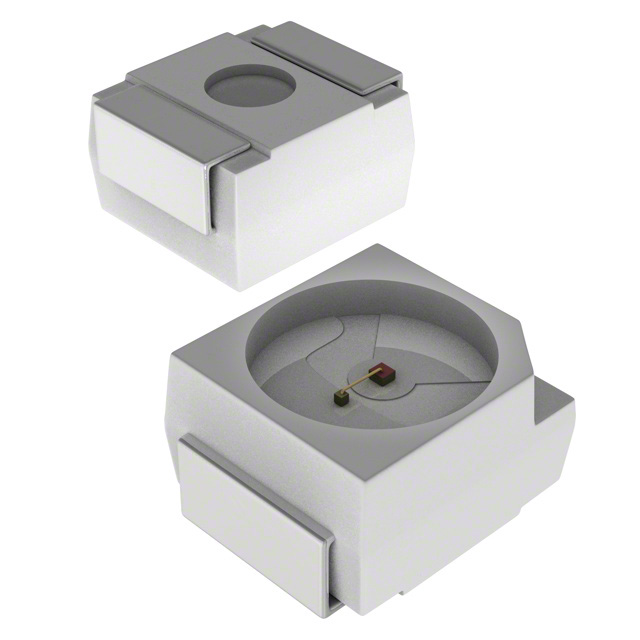

Panasonic Electronic Components' LNJ224C44RA is a red LED indicator designed for surface mount applications. This discrete component, utilizing a 3528 SMD package, emits light at a dominant wavelength of 630nm with a peak wavelength of 645nm. It operates with a typical forward voltage of 2.1V and a test current of 20mA, achieving a luminous intensity of 150mcd. The 2-PLCC package measures 3.20mm in length and 2.80mm in width, with a maximum height of 2.00mm. This LED is suitable for various industrial applications requiring reliable visual indication. The component is supplied on tape and reel for efficient automated assembly.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 150mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 2.00mm |
| Wavelength - Peak | 645nm |
| Wavelength - Dominant | 630nm |
| Supplier Device Package | 3528 |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
