LNJ218C8ARA
LED RED DOME LENS TYPE SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

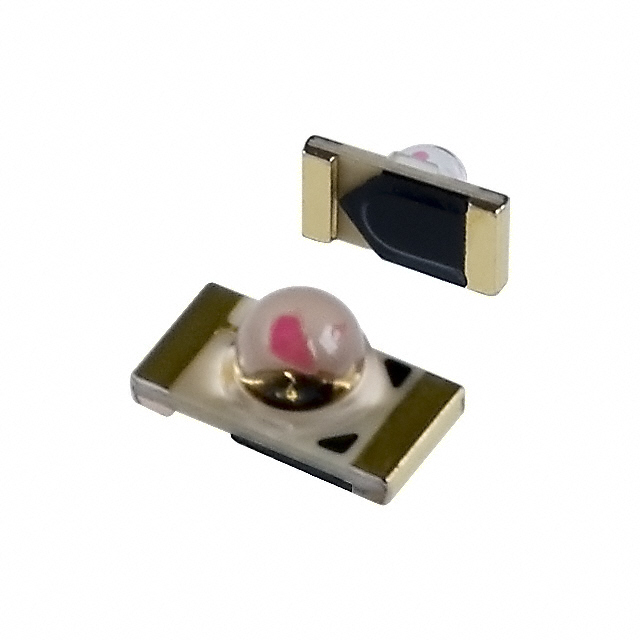

Panasonic Electronic Components LNJ218C8ARA is a discrete red LED designed for surface mount applications. This component features a 1206 (3216 Metric) package with dimensions of 3.20mm L x 1.60mm W and a maximum height of 1.62mm. It utilizes a round, domed lens with a diameter of 1.42mm. The LED exhibits a typical forward voltage of 1.72V and a peak wavelength of 660nm, delivering a millicandela rating of 32mcd at a test current of 10mA. This component is commonly employed in industrial automation, consumer electronics, and automotive illumination systems requiring reliable visual indication. The LNJ218C8ARA is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Red |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 32mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.72V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.62mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Dome Lens Type |
| Lens Transparency | - |
| Lens Style | Round with Domed Top |
| Lens Size | 1.42mm Dia |
