LNJ216C8ARU
LED RED MICROLENS TYPE SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

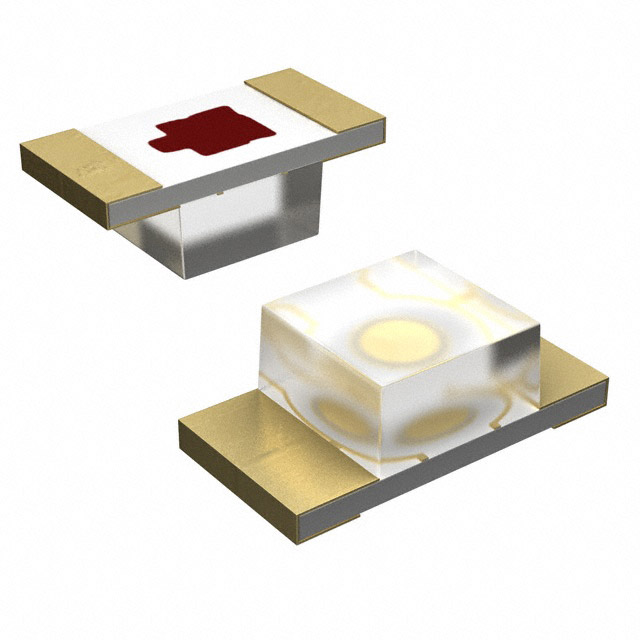

Panasonic Electronic Components discrete LED, part number LNJ216C8ARU, is a red indicator designed for surface mount applications. This 1206 (3216 Metric) package features a microlens type with a 1.70mm diameter round with flat top lens. It operates with a typical forward voltage of 1.72V and a test current of 10mA, yielding a luminous intensity of 10.5mcd. The component measures 3.20mm L x 1.60mm W with a maximum height of 1.10mm. The peak wavelength is 660nm. This component is commonly utilized in automotive and industrial control systems for visual status indication. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Red |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 10.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.72V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Microlens Type |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 1.70mm Dia |
