LNJ216C8ARA
LED RED MICROLENS TYPE SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

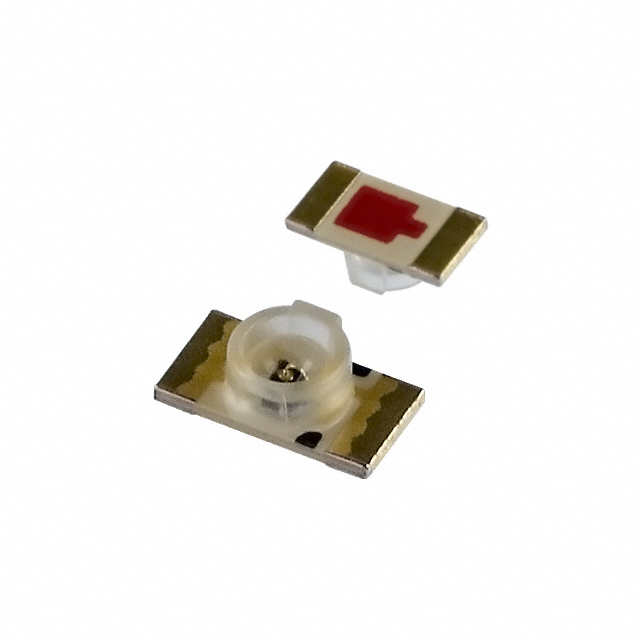

Panasonic Electronic Components LNJ216C8ARA is a discrete red LED designed for surface mount applications in a 1206 (3216 Metric) package. Featuring a microlens type, this component offers a typical forward voltage of 1.72V at 10mA test current, producing a luminous intensity of 10.5mcd. The LED has a peak wavelength of 660nm and a compact footprint measuring 3.20mm L x 1.60mm W with a maximum height of 1.10mm. Its round lens with a flat top is designed for clear visual indication. This component is commonly utilized in industrial automation, consumer electronics, and automotive systems requiring reliable visual signaling. The LNJ216C8ARA is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Red |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 10.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.72V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Microlens Type |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 1.70mm Dia |
