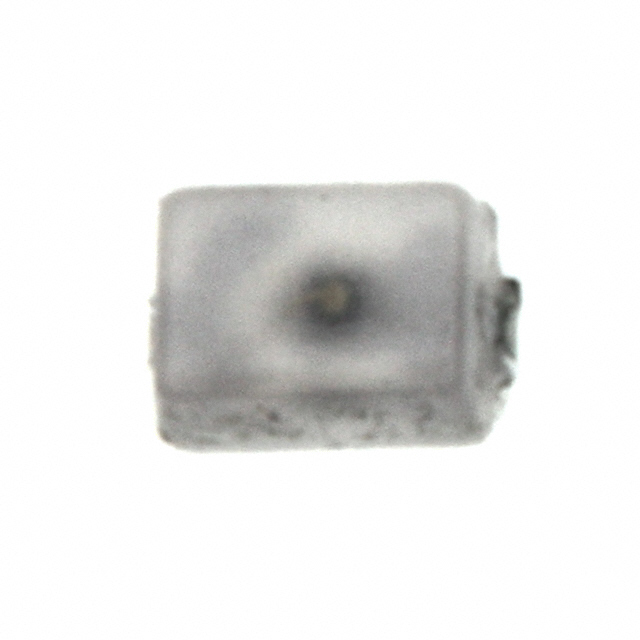

LNJ206R5AUX
LED RED CHIP SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LNJ206R5AUX is a red LED indicator designed for surface-mount applications. This discrete component features a 2-SMD, J-Lead package with dimensions of 1.70mm x 1.25mm and a maximum height of 1.10mm. It operates with a typical forward voltage of 1.72V and a test current of 10mA, producing a luminous intensity of 5mcd. The LED utilizes a rectangular lens with a flat top and a peak wavelength of 660nm. This component is commonly employed in industrial automation, consumer electronics, and telecommunications equipment for status indication and signaling. The LNJ206R5AUX is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Red |
| Size / Dimension | 1.70mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.72V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Chip LED |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.70mm x 1.25mm |
