LNJ167W8RRA
LED GREEN/RED 4SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

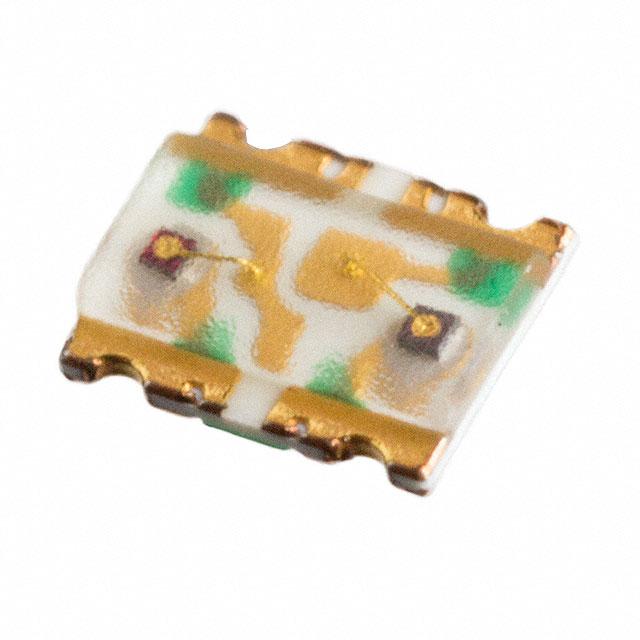

Panasonic Electronic Components LNJ167W8RRA is a dual-color, surface-mount LED designed for discrete indication. This 4-SMD, No Lead component features independent green and red emitters, with typical forward voltage ratings of 1.95V for both colors. The dominant wavelengths are 572nm for green and 628nm for red, with peak wavelengths at 575nm and 638nm respectively. At a test current of 5mA, the millicandela ratings are 7.5mcd for green and 15mcd for red. The LED is housed in a compact 1.30mm L x 1.05mm W package with a height not exceeding 0.35mm. The lens style is a rectangle with a flat top, measuring 1.30mm x 0.70mm. This component is suitable for applications in industrial automation, consumer electronics, and medical devices requiring clear visual status indication. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Color | Green, Red |
| Size / Dimension | 1.30mm L x 1.05mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 7.5mcd Green, 15mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 1.95V Green, 1.95V Red |
| Lens Color | - |
| Current - Test | 5mA Green, 5mA Red |
| Viewing Angle | - |
| Height (Max) | 0.35mm |
| Wavelength - Peak | 575nm Green, 638nm Red |
| Wavelength - Dominant | 572nm Green, 628nm Red |
| Supplier Device Package | 4-SMD |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.30mm x 0.70mm |
