LNJ123W8PRZ

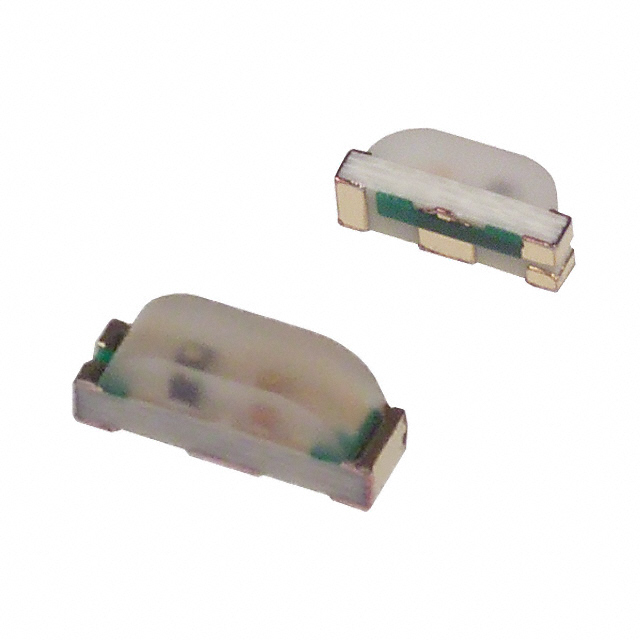

LED GREEN/RED SMD R/AManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LNJ123W8PRZ is a bi-color LED for discrete indication applications. This surface-mount, right-angle component features a 3-SMD, No Lead package with a common anode configuration. It offers both green and red illumination, with typical forward voltages of 2.03V for green and 1.72V for red at a 10mA test current. The luminous intensity is rated at 5mcd for green and 4mcd for red. The LED measures 2.50mm in length and 1.10mm in width, with a maximum height of 0.85mm. Its rectangular lens, measuring 2.14mm x 0.70mm, has a domed top. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication. It is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Color | Green, Red |
| Size / Dimension | 2.50mm L x 1.10mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 5mcd Green, 4mcd Red |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 2.03V Green, 1.72V Red |
| Lens Color | - |
| Current - Test | 10mA Green, 10mA Red |
| Viewing Angle | - |
| Height (Max) | 0.85mm |
| Wavelength - Peak | 565nm Green, 655nm Red |
| Wavelength - Dominant | - |
| Lens Transparency | - |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.14mm x 0.70mm |
