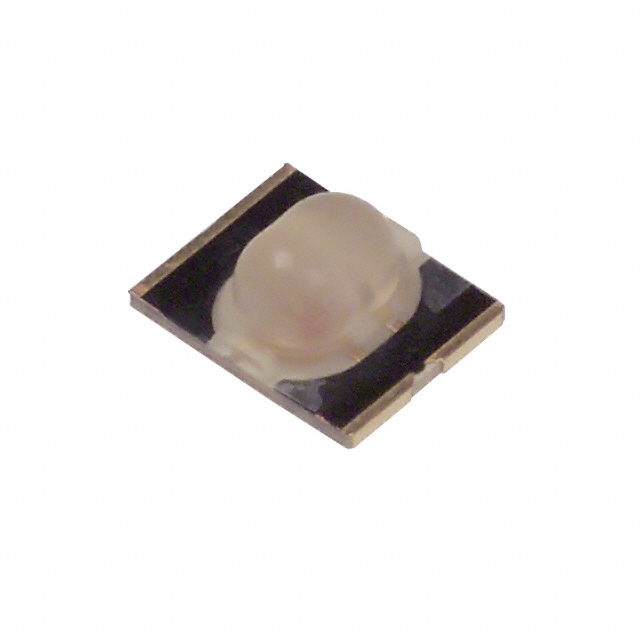

LNJ121W84RA
LED GREEN/RED SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LNJ121W84RA is a dual-color LED, offering both Green and Red illumination within a single 1210 (3225 Metric) surface-mount package. This discrete component features a common cathode configuration, enabling independent control of each color. The Green LED exhibits a typical forward voltage of 2.03V and a peak wavelength of 565nm, delivering 10mcd luminous intensity at 10mA. The Red LED operates at a typical forward voltage of 1.92V with a peak wavelength of 645nm, providing 13.4mcd at 10mA. Dimensions are 3.20mm L x 2.50mm W with a maximum height of 1.38mm. This component is commonly found in industrial automation, consumer electronics, and medical device applications requiring clear visual status indication. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1210 (3225 Metric) |
| Color | Green, Red |
| Size / Dimension | 3.20mm L x 2.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 10mcd Green, 13.4mcd Red |
| Configuration | Common Cathode |
| Voltage - Forward (Vf) (Typ) | 2.03V Green, 1.92V Red |
| Lens Color | - |
| Current - Test | 10mA Green, 10mA Red |
| Viewing Angle | - |
| Height (Max) | 1.38mm |
| Wavelength - Peak | 565nm Green, 645nm Red |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | - |
| Lens Style | Oval with Domed Top |
| Lens Size | 2.00mm x 1.42mm |
