LNJ115W8RRA1
LED GREEN/ORANGE TSS-2 TYPE SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

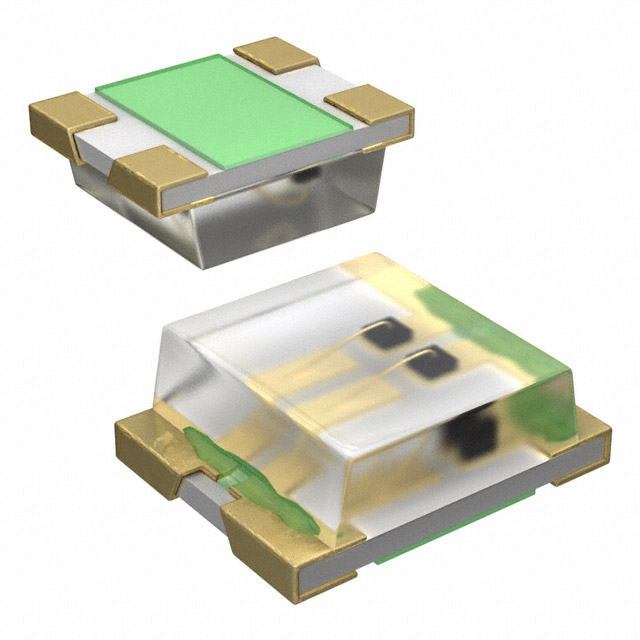

Panasonic Electronic Components LNJ115W8RRA1 is a discrete LED with independent green and orange emitters. This surface mount component, housed in an 0605 (1613 Metric) package, offers a dual-color indication capability. The green LED operates with a typical forward voltage of 2.03V at 10mA, emitting at a dominant wavelength of 572nm and producing 15mcd. The orange LED features a typical forward voltage of 2V at 10mA, with a dominant wavelength of 620nm and a luminous intensity of 32mcd. The component dimensions are 1.60mm L x 1.25mm W, with a height of 0.65mm. The TSS-2 type lens measures 1.10mm x 1.25mm and has a flat top rectangular style. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication. The LNJ115W8RRA1 is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0605 (1613 Metric) |
| Color | Green, Orange |
| Size / Dimension | 1.60mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 15mcd Green, 32mcd Orange |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.03V Green, 2V Orange |
| Lens Color | - |
| Current - Test | 10mA Green, 10mA Orange |
| Viewing Angle | - |
| Height (Max) | 0.65mm |
| Wavelength - Peak | 575nm Green, 630nm Orange |
| Wavelength - Dominant | 572nm Green, 620nm Orange |
| Supplier Device Package | TSS-2 Type |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.25mm |
