LNJ115W8ARA
LED GREEN/ORANGE TSS-2 TYPE SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

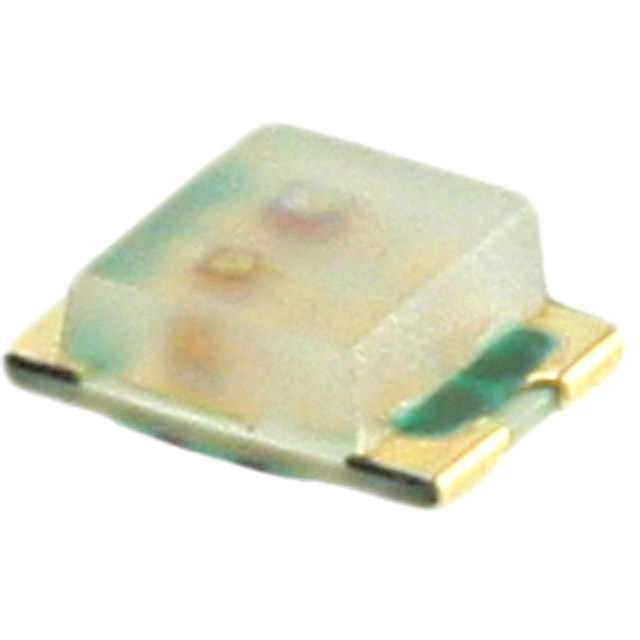

Panasonic Electronic Components LNJ115W8ARA is a discrete dual-color LED in a 0605 (1613 Metric) SMD package. This component offers independent Green and Orange illumination, each with a typical forward voltage of 2.03V for Green and 1.93V for Orange at a 10mA test current. The Green LED exhibits a peak wavelength of 565nm and a millicandela rating of 5mcd, while the Orange LED has a peak wavelength of 630nm and a millicandela rating of 1mcd. The LED features a rectangular lens with a flat top, measuring 1.10mm x 1.25mm. With a maximum height of 0.65mm and dimensions of 1.60mm L x 1.25mm W, this device is suitable for surface mounting. The LNJ115W8ARA is supplied on tape and reel (TR) and finds application in industrial automation, consumer electronics, and telecommunications equipment for status indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0605 (1613 Metric) |
| Color | Green, Orange |
| Size / Dimension | 1.60mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 5mcd Green, 1mcd Orange |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.03V Green, 1.93V Orange |
| Lens Color | - |
| Current - Test | 10mA Green, 10mA Orange |
| Viewing Angle | - |
| Height (Max) | 0.65mm |
| Wavelength - Peak | 565nm Green, 630nm Orange |
| Wavelength - Dominant | - |
| Supplier Device Package | TSS-2 Type |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.25mm |
