LNJ107W5ARA1
LED GREEN/ORANGE S-GW-2 TYPE SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

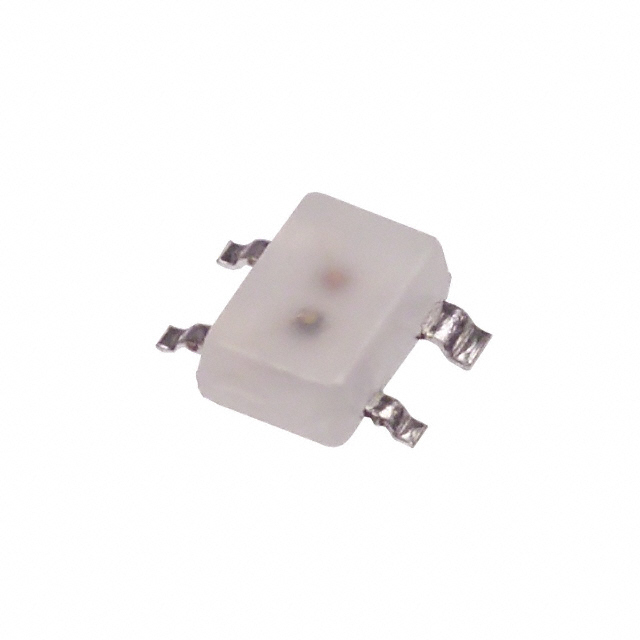

Panasonic Electronic Components LNJ107W5ARA1 is a discrete LED designed for surface mounting. This component features independent green and orange emitters, each specified with a typical forward voltage of 2.03V for green and 1.93V for orange when operated at 10mA test current. The luminous intensity is rated at 2.6mcd for green and 1mcd for orange. Housed in a 4-SMD, Gull Wing package (S-GW-2 Type), it measures 2.50mm in length by 1.70mm in width, with a maximum height of 1.10mm. The green emitter has a peak wavelength of 565nm, and the orange emitter has a peak wavelength of 630nm. This component is commonly utilized in industrial automation and consumer electronics for visual indication purposes. It is supplied on a tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Color | Green, Orange |
| Size / Dimension | 2.50mm L x 1.70mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2.6mcd Green, 1mcd Orange |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.03V Green, 1.93V Orange |
| Lens Color | - |
| Current - Test | 10mA Green, 10mA Orange |
| Viewing Angle | - |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 565nm Green, 630nm Orange |
| Wavelength - Dominant | - |
| Supplier Device Package | S-GW-2 Type |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.50mm x 1.70mm |
