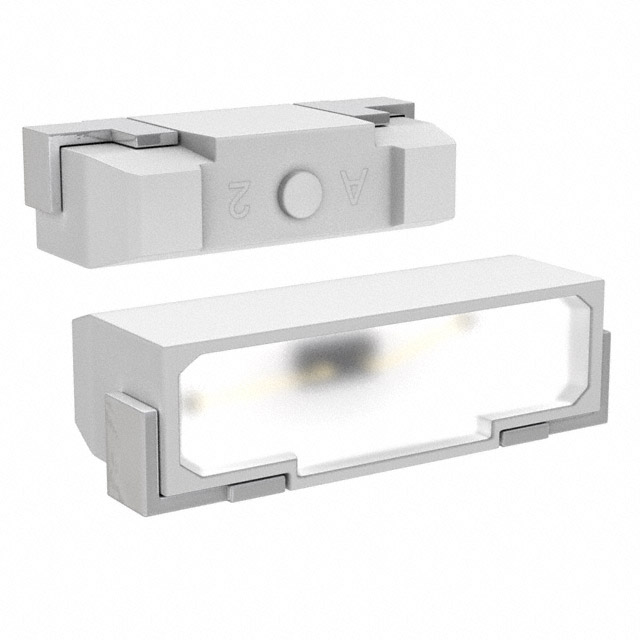

LNJ080V6BRA
LED WHITE SIDE VIEW LED SMD R/AManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LNJ080V6BRA is a white, side-view LED designed for discrete indication. This surface-mount component, housed in a 1003 (2607 Metric) package suitable for right-angle mounting, features a standard configuration with a flat-top rectangular lens. Operating at a typical forward voltage of 3.2V, it delivers a luminous intensity of 1720mcd at a test current of 20mA. The compact dimensions of 2.80mm L x 1.20mm W and a maximum height of 0.80mm make it ideal for space-constrained applications. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment where reliable visual feedback is critical. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1003 (2607 Metric) |
| Color | White |
| Size / Dimension | 2.80mm L x 1.20mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 1720mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 0.80mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | Side View LED |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
