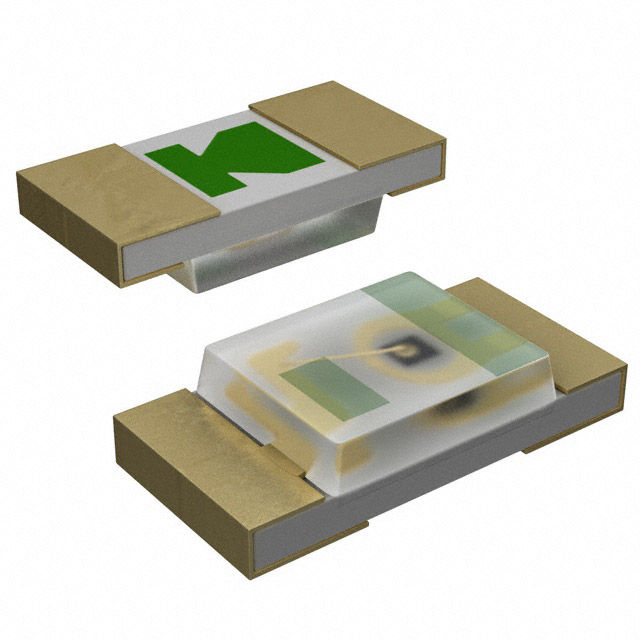

LNJ026X8ARA1
LED WHITE SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LNJ026X8ARA1 is a white LED indication component designed for surface mount applications. This discrete LED features a 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width. The component operates with a typical forward voltage of 2.9V and a test current of 5mA, yielding a millicandela rating of 40mcd. The lens is rectangular with a flat top, measuring 1.10mm x 0.80mm. This component is supplied in Tape & Reel (TR) packaging. It is commonly utilized in industrial automation and consumer electronics for status indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | White |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 40mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Lens Color | - |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 0.42mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | SMD |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
