LNJ024X4ARA
LED WHITE 3528 SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

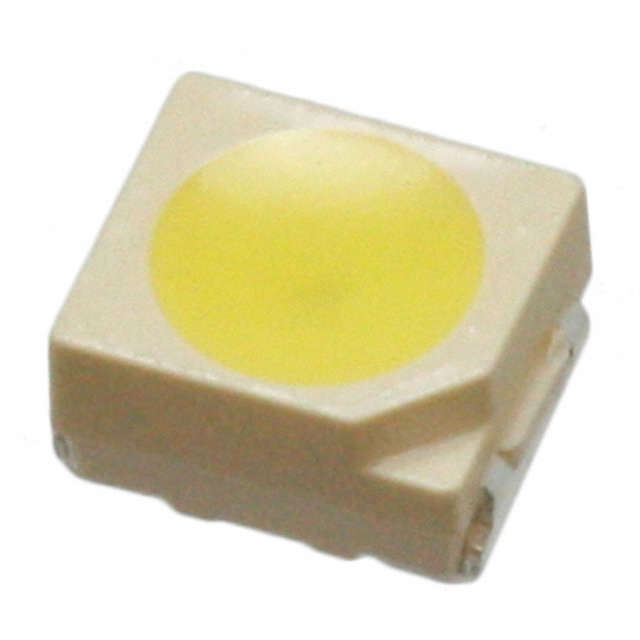

Panasonic Electronic Components LNJ024X4ARA is a white LED designed for discrete indication. This 3528 SMD component, housed in a 2-PLCC package, operates at a typical forward voltage of 3V and a test current of 10mA, delivering 240mcd luminous intensity. Its dimensions are 3.20mm L x 2.80mm W with a maximum height of 2.10mm. The LED features a round lens with a flat top. This component is commonly utilized in automotive, industrial, and consumer electronics applications requiring reliable visual feedback. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | White |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 240mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 2.10mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 3528 |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
