LNJ012X8ARA1
LED WHITE TSS TYPE LED SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

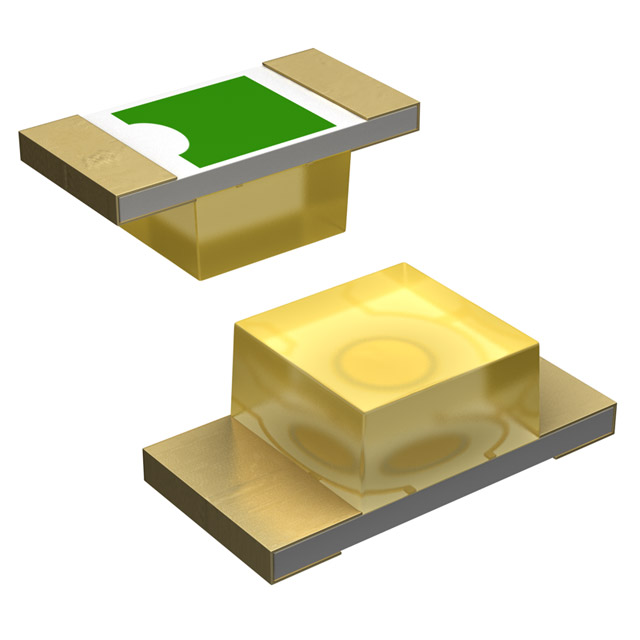

Panasonic Electronic Components LNJ012X8ARA1 is a white LED designed for discrete indication applications. This surface mount component, housed in a 0603 (1608 Metric) package, features a standard configuration with a typical forward voltage of 2.9V. Tested at 5mA, it delivers a millicandela rating of 40mcd. The LED has a lens measuring 1.10mm x 0.80mm with a flat-top rectangular style. Its dimensions are 1.60mm in length and 0.80mm in width, with a maximum height of 0.65mm. This device is commonly utilized in automotive, industrial, and consumer electronics for status indication. The LNJ012X8ARA1 is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | White |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 40mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Lens Color | - |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 0.65mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | TSS Type LED |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
