LN863RCPP
LED ORANGE CLEAR FLAT TOP T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

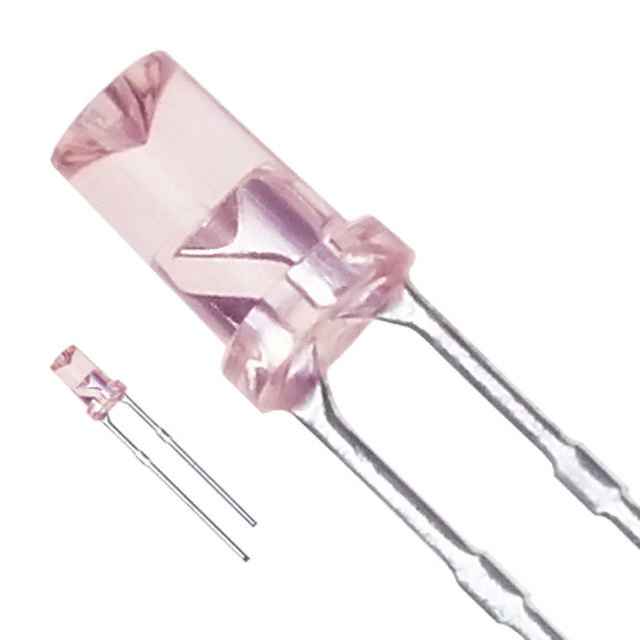

Panasonic Electronic Components LN863RCPP is a discrete orange LED with a clear, flat-top lens designed for through-hole mounting. This component operates with a typical forward voltage of 2.1V and a test current of 20mA, producing a luminous intensity of 1mcd. The lens measures 2.80mm in diameter, and the overall height of the component is a maximum of 5.70mm. The dominant wavelength is 630nm. This component is commonly utilized in industrial automation, consumer electronics, and automotive applications requiring clear visual indication. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Orange |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 5.70mm |
| Wavelength - Peak | 630nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Flat Top LED |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.80mm Dia |
