LN842RPX
LED ORANGE SQUARE TYPE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

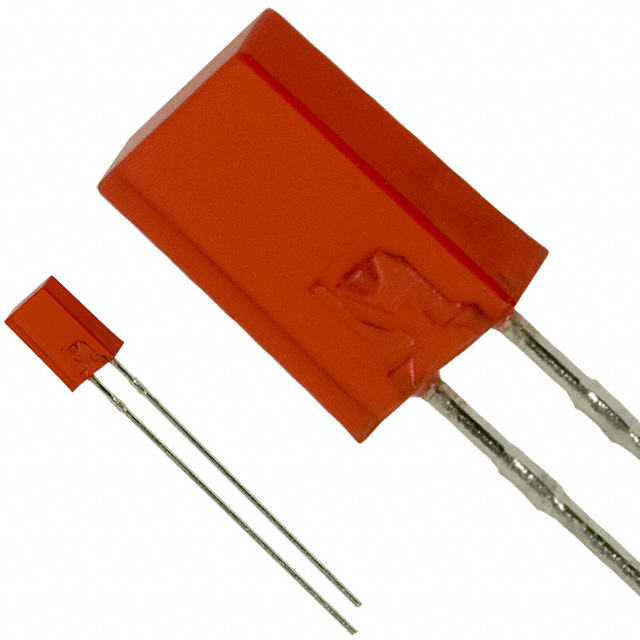

Panasonic Electronic Components LN842RPX is a through-hole mounted orange LED. This discrete indicator features a 5.00mm x 2.00mm rectangular lens with a flat top. It operates with a typical forward voltage of 2.1V and a test current of 20mA, producing a luminous intensity of 2.5mcd. The peak wavelength is 630nm. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for visual status indication. The device is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Orange |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 7.70mm |
| Wavelength - Peak | 630nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.00mm x 2.00mm |
