LN81WPHL
LED ORANGE DIFF 5MM ROUND T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

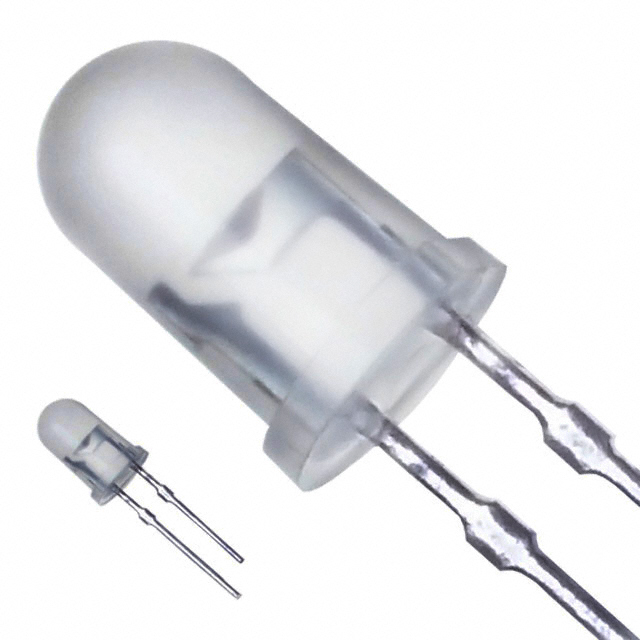

Panasonic Electronic Components' discrete LED, part number LN81WPHL, features a 5mm diffused round lens with a domed top. This orange LED operates with a typical forward voltage of 2.1V and a test current of 20mA, producing a luminous intensity of 15mcd. The through-hole radial package allows for straightforward mounting. Its 630nm peak wavelength and diffused lens provide clear visual indication. This component is commonly employed in industrial automation, consumer electronics, and automotive applications requiring reliable visual status feedback.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Orange |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 15mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | White |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 8.85mm |
| Wavelength - Peak | 630nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
