LN81RPHL
LED ORANGE DIFF 5MM ROUND T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

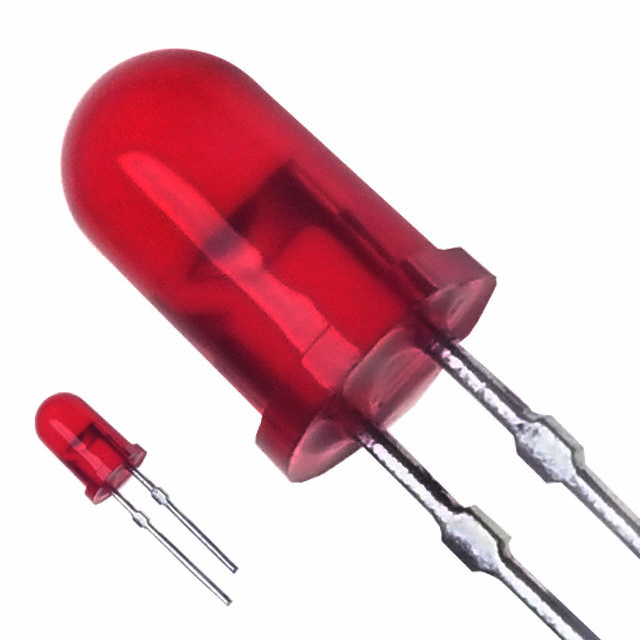

Panasonic Electronic Components LN81RPHL is a through-hole mounted, diffused orange LED with a 5mm, T-1 3/4 radial package. This discrete indicator features a forward voltage of 2.1V (typical) and operates at a test current of 20mA, producing a luminous intensity of 10mcd. The component's red lens color and domed top provide a clear visual indication. This LED is suitable for applications in consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Orange |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 8.85mm |
| Wavelength - Peak | 630nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
