LN49YPX
LED AMBER 4MM ROUND T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

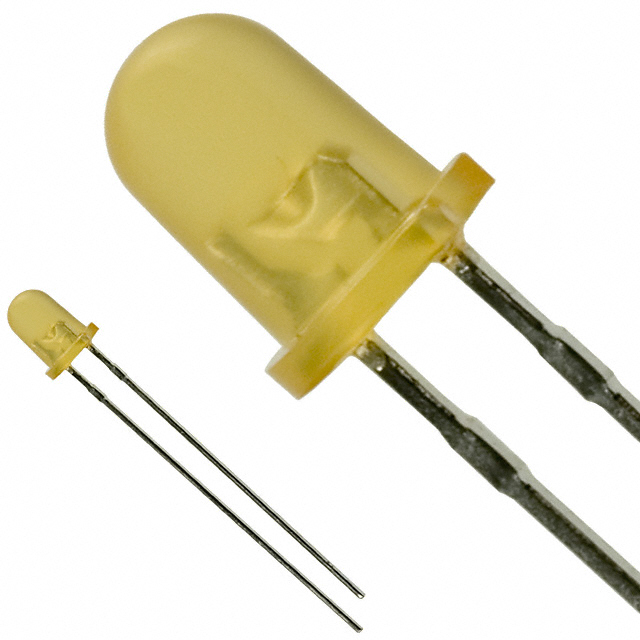

Panasonic Electronic Components LN49YPX is an amber, 4mm diameter through-hole LED. This discrete component features a round, domed top lens style and a radial package. With a typical forward voltage of 2.2V and a test current of 20mA, it achieves a luminous intensity of 10mcd. The peak wavelength is 590nm. This component is suitable for applications in industrial control systems and general indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Amber |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 6.20mm |
| Wavelength - Peak | 590nm |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | - |
| Lens Style | Round with Domed Top |
| Lens Size | 4.00mm Dia |
