LN49YP
LED AMBER DIFFUSED 4MM ROUND T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

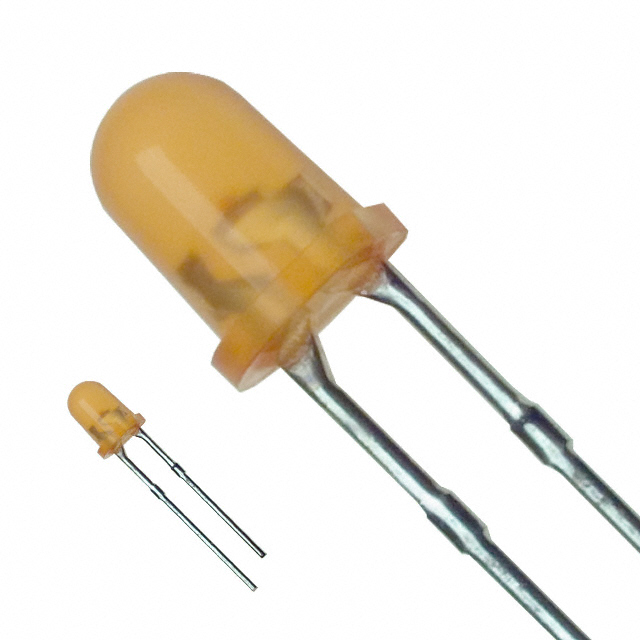

Panasonic Electronic Components' LN49YP is a 4mm round, diffused amber LED designed for through-hole mounting. This discrete indicator component operates with a typical forward voltage of 2.2V and a test current of 20mA, producing a luminous intensity of 10mcd. It features a 4mm diameter lens with a domed top and a peak wavelength of 590nm. Commonly utilized in industrial controls, consumer electronics, and automotive applications, the LN49YP is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Amber |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Amber |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 6.20mm |
| Wavelength - Peak | 590nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 4mm Round |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 4.00mm Dia |
