LN45YP
LED AMBER DIFF SIDE VIEW T/H R/AManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

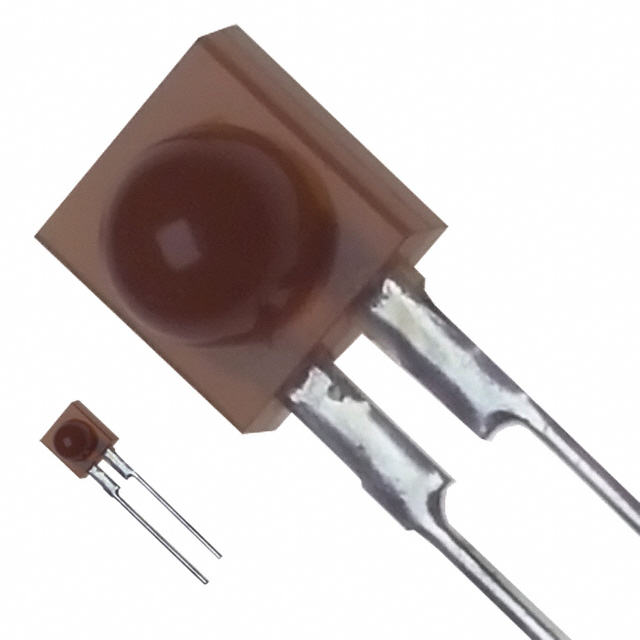

Panasonic Electronic Components LN45YP is a diffused amber LED with a through-hole, right-angle mounting configuration. This discrete indicator features a 2.2V forward voltage and a peak wavelength of 590nm. The lens is round with a domed top, measuring 3.50mm in diameter, and is provided in a diffused amber color. Tested at 20mA, it achieves a millicandela rating of 0.8mcd. The component has a typical radial package and dimensions of 4.50mm L x 4.20mm W with a maximum height of 7.90mm. This component is commonly utilized in industrial automation and control systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Amber |
| Size / Dimension | 4.50mm L x 4.20mm W |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 0.8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Amber |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 7.90mm |
| Wavelength - Peak | 590nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Side View LED |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3.50mm Dia |
