LN442YP
LED AMBER DIFF SQUARE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

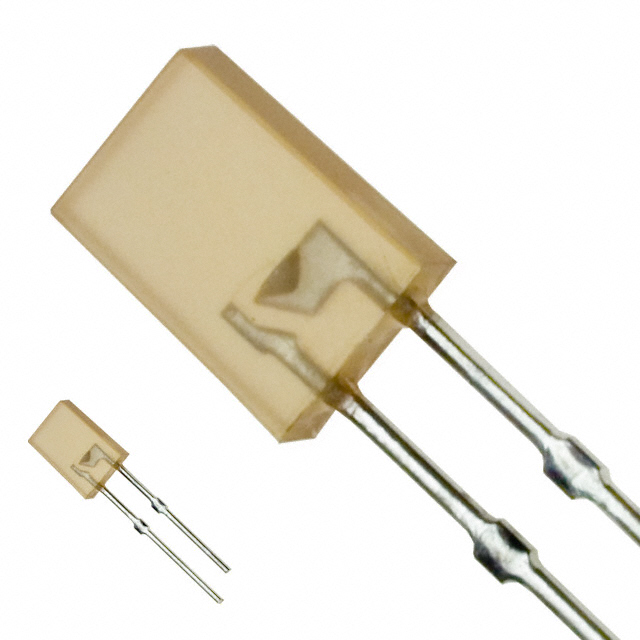

Panasonic Electronic Components LN442YP is a discrete, through-hole mounted amber LED with a diffused lens. Featuring a 5.00mm x 2.00mm rectangular lens with a flat top, this component operates with a typical forward voltage of 2.2V and a test current of 20mA, producing a millicandela rating of 2mcd. The dominant wavelength is 590nm. This component is suitable for applications requiring clear amber visual indication, commonly found in industrial control systems, consumer electronics, and automotive interfaces. The radial package is supplied in bulk.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Amber |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Amber |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 7.70mm |
| Wavelength - Peak | 590nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.00mm x 2.00mm |
