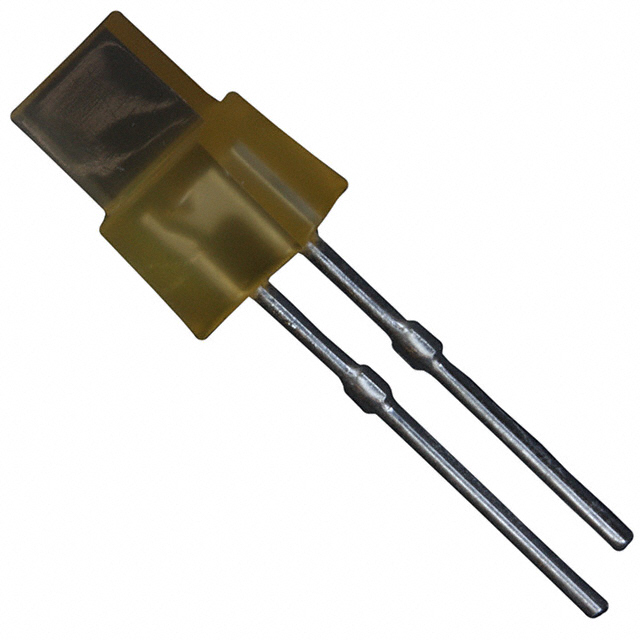

LN424YP
LED AMBER DIFF RADIAL LEAD T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LN424YP is a through-hole mounted, diffused amber LED with a radial lead package. This discrete indicator features a forward voltage of 2.2V (typical) at a test current of 20mA, producing a millicandela rating of 2mcd. The LED has a rectangular lens with a flat top, measuring 5.00mm x 1.00mm, and an overall height of 8.70mm. The dominant wavelength is 590nm. This component is commonly utilized in industrial automation, consumer electronics, and general indication applications where reliable visual feedback is required. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Amber |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Amber |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 8.70mm |
| Wavelength - Peak | 590nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Radial Lead |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.00mm x 1.00mm |
Request a Quote
