LN38GCPX
LED GREEN CLEAR 3MM T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

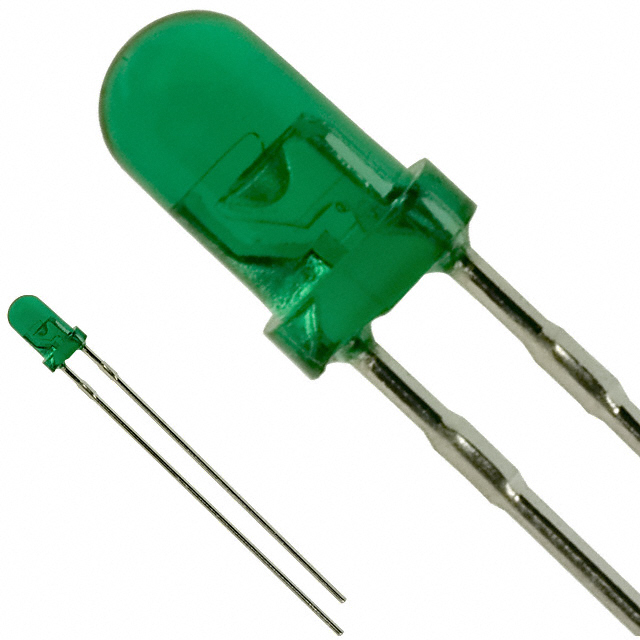

Panasonic Electronic Components LN38GCPX is a through-hole mounted, green, clear lens LED with a 3mm diameter. This discrete indicator component features a standard configuration with a forward voltage of 2.2V (typical) and a test current of 20mA, yielding a luminous intensity of 8mcd. The dominant wavelength is 565nm. Its radial package and domed-top round lens are suitable for various industrial applications, including consumer electronics and general signaling. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 5.20mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 3mm |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
