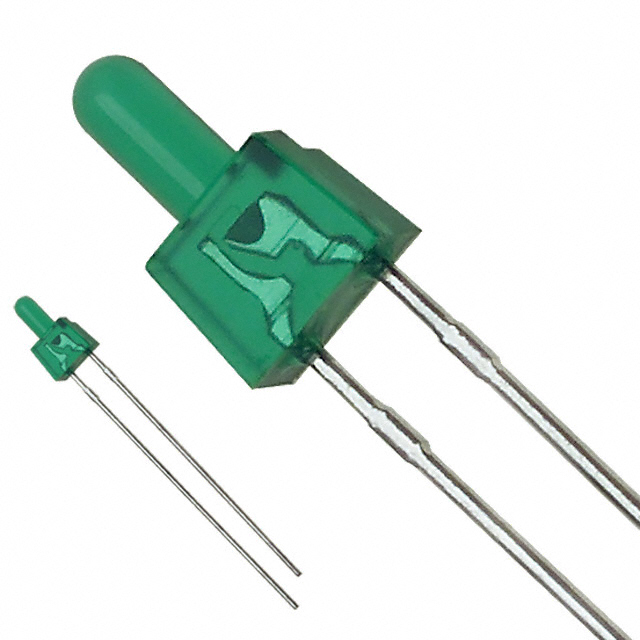

LN382GPX
LED GREEN 2MM T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LN382GPX is a through-hole mounted, green discrete LED with a standard configuration. This component features a 2.2V forward voltage (typ) and a 20mA test current, yielding a millicandela rating of 1.5mcd. The lens is 2.00mm in diameter with a round, domed top and a peak wavelength of 565nm. Applications for this component include industrial automation, consumer electronics, and medical devices requiring reliable visual indication. The radial package is supplied in bulk.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 7.90mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 2mm |
| Lens Transparency | - |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
