LN376GPX
LED GREEN RADIAL LEAD T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

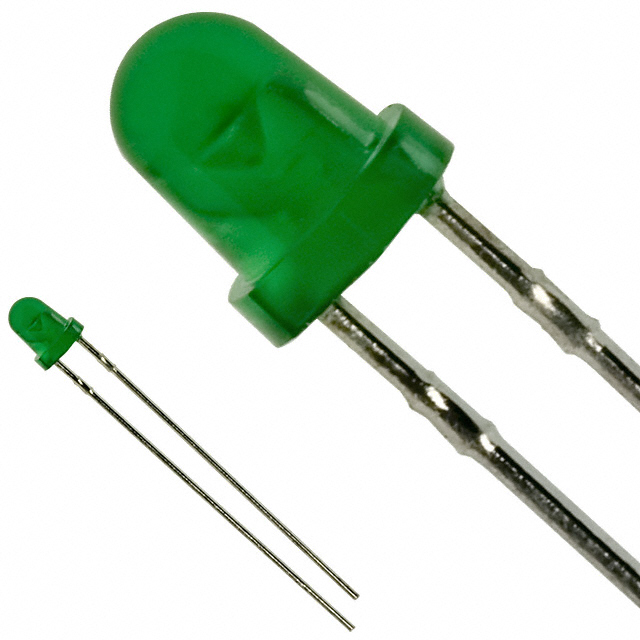

Panasonic Electronic Components LN376GPX is a green radial lead through-hole LED for general indication. This discrete component operates with a typical forward voltage of 2.2V and a test current of 20mA, producing a luminous intensity of 5mcd. The LED features a 3.20mm diameter round lens with a domed top and a maximum height of 4.80mm. Its green light output has a peak wavelength of 565nm. This component finds application in industrial control and automation systems, as well as consumer electronics for status indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 4.80mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | - |
| Lens Style | Round with Domed Top |
| Lens Size | 3.20mm Dia |
