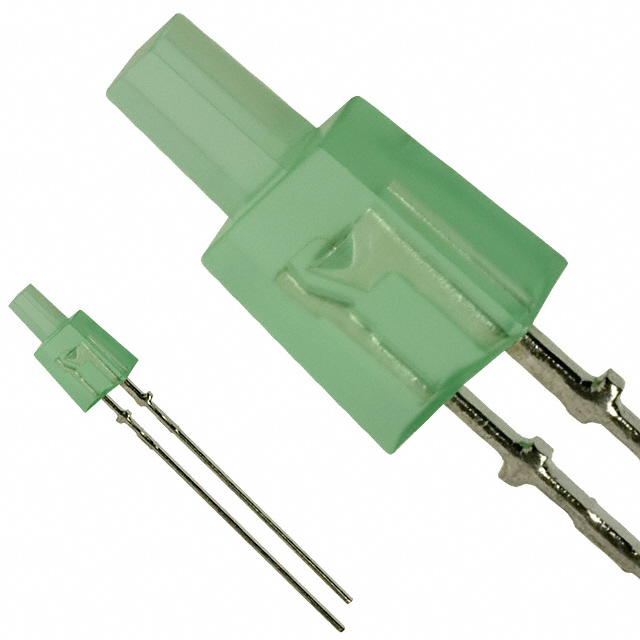

LN365GPH
LED GRN DIFF SQUARE TYPE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components' LN365GPH is a green, diffused, square-type LED with a flat top, designed for through-hole mounting. This discrete indicator features a forward voltage of 2.2V (typical) and a peak wavelength of 565nm, delivering 3mcd of luminous intensity at a test current of 20mA. The radial package is supplied in bulk, suitable for high-volume applications. Its robust construction and clear, diffused green illumination make it a reliable choice for industrial control panels, automotive dashboards, and consumer electronics where visual status indication is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 3mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 16.35mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type LED |
| Lens Transparency | Diffused |
| Lens Style | Square with Flat Top |
| Lens Size | 1.80mm |
