LN364GCP
LED GREEN CLEAR FLAT TOP LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

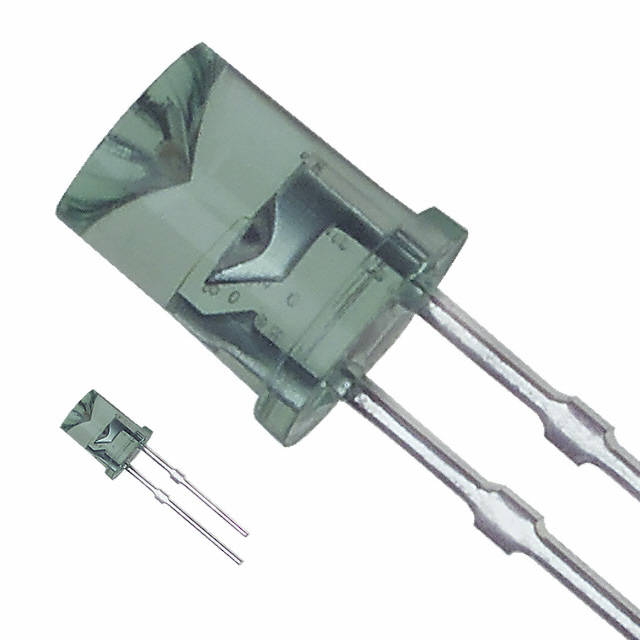

Panasonic Electronic Components LN364GCP is a through-hole mounted, green, clear LED with a flat top lens style. This discrete indicator component operates with a typical forward voltage of 2.2V and a test current of 20mA, producing a millicandela rating of 2mcd. Its radial package configuration and 6.90mm maximum height make it suitable for various industrial applications including control panels, status indicators, and consumer electronics. The green lens color and clear transparency ensure effective visual signaling.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 6.90mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Flat Top LED |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 4.80mm Dia |
